| Place of Origin |
Zhejiang China (Mainland) |
| Brand Name |
TENGLONG |
| Model Number |
JSS72-6S |
| Theory |
Time Relay |
| Usage |
General Purpose |
| Protect Feature |
Sealed |

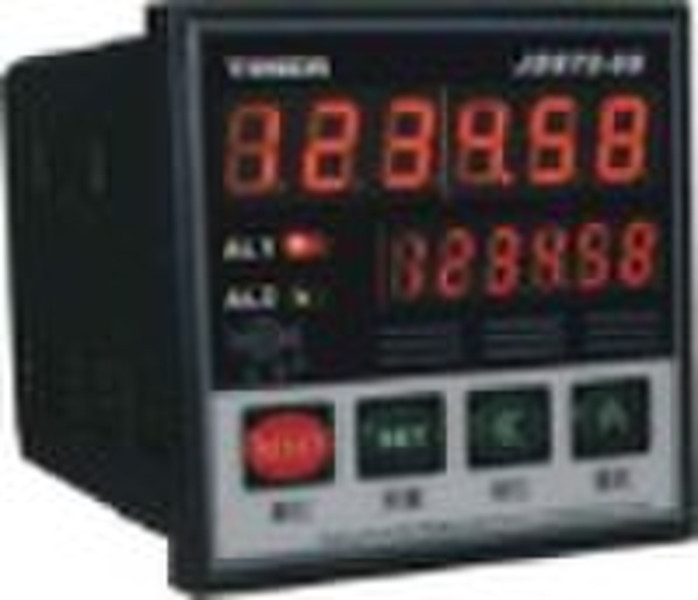

JSS72-6S Intelligent timing relay Features: 1 two-gang digital tube indicates the preset value and present value; 2 it used push button to set the parameter, which is convenient and reliable; 3 there are two counting modes for choices: up, dn 4 two kinds of output channels: AL1 AL2 (relay, transistor OC) 5 14 kinds of output types: F N R C K1 K2 P Q A D H L O E 6 the range of the delay time are free for choices 7 with cut-off memory function 8 push button and external terminal have the reset functon Main paremeters: 1 display digits: two groups of 4 digits LED 2delay timerange: 99.99s, 999.9s, 99m59s, 99h59m 3 output delay time range: 0.01-99.99s 4 output mode: relay contact 5 power consumption: 2 watts 6 rated voltage: AC110-240V, AC24V, 50/60HZ, DC24V 7 counting mode: add count and subtract are available 8 output type: F N R C K1 K2 P Q A D H L O E 9 reset mode: panel, connection terminal, auto 10 output contact capacity: AC240V3A resistive load 11 power off memory: over 10 years(25°c) 12 working temperature; -10-+45°c 13 timing error: ±0.1%
